Product Details

Product Parameter

Power Supply
Ambient Temperature Range-30~+43℃
Heating Capacity(kw/COP)A7W35
Domestic Hot Water(kW/COP)A20W55
DHW Input Power/Current (kW/A)A7W552.22/9.52.9/13.24.1/18.65.2/214.3/75.1/8.1
Rated Heating Input Power/Current (kW/A)A7W352.1/8.52.7/11.53.85/17.44.7/183.95/6.24.7/7.2
Max.Working Power/Current(kw/A)3.5/154.5/186.5/25
Mitsubishi DC Inverter Compressor
Fan Motor
Brushless DC Inverter Variable Speed Motor
Electric Expansive ValveSanhua/Danfoss
Other components Built-inHigh& Low-Pressure Switch/Water Flow Switch
Packing Dimension(L/W/H)mm980/530/950980/530/9501030/510/14151130/520/15101030/510/14151130/520/1510
Net Weight (kg)7580115125115125
Packing Gross Weight(kg)
A7/W35: outdoor air temperature (DB/WB) 7℃/6℃, water inlet/outlet temperature 30℃/35℃
A2/W35: outdoor air temperature (DB/WB) 2℃/1℃, water inlet/outlet temperature 30℃/35℃
A-15/W35: outdoor air temperature (DB/WB) -15℃/-14℃, water inlet/outlet temperature 30℃/35℃

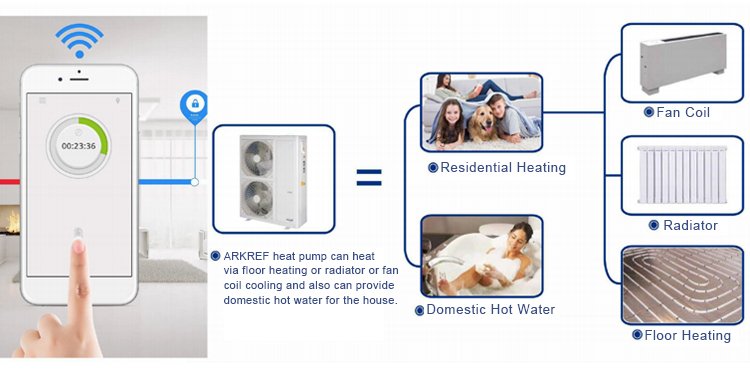

ARKREF Wifi Smart Control

The DC inverter heat pump adopts Wi-Fi Smart Control technology (optional). User can control their heat pump via a cloud data center and know all things about heat pumps anytime and anywhere. Users can control on a phone or computer to operate or monitor the heat pump working and prepare a comfortable condition for a house in advance.

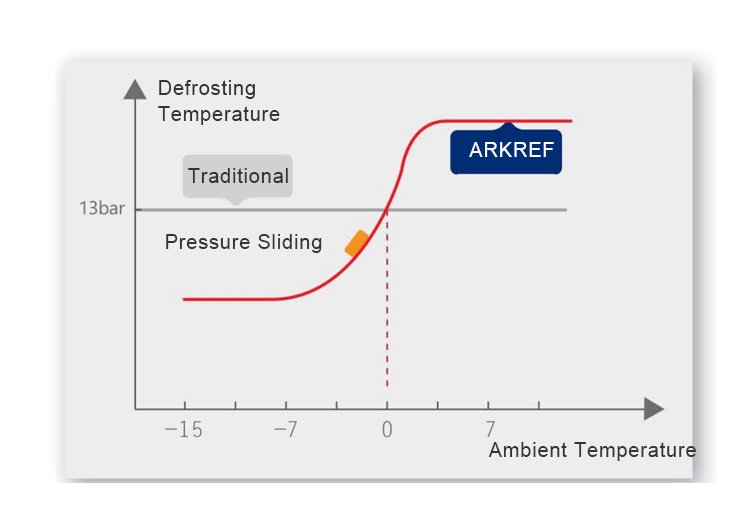

Intelligence Defrosting

Traditional Defrosting Method

The traditional defrosting method has with fixed defrosting time and start temperature. Once the ambient temperature reaches or is lower than -7℃, the unit will start defrosting. It's easy to cause energy waste when there is no defrost and will reduce the heating performance at the same time.

Intelligent Defrosting Method

Arkref intelligent defrosting uses pressure sliding defrosting technology to figure out the exact defrosting time and start pressure according to the real ambient temperature. It saves energy and makes the heat pump work in high efficiency.

30% Energy Saving

With the use of inverter compressors, brushless DC fan motors, and a smart full-control method, the units can regulate the running capacity. Energy consumption is 30% lower than standard heat pump units.

Powerful Heating At -25℃ Ambient Temperature

All heat pump adopts Mitsubishi high-efficiency DC inverter compressor and DC inverter brushless motor, which combined with smart full DC controlling, assures the motor speed and refrigerant flow can be adjusted in real-time according to the changes in the environment and ensures the system can also provide powerful heating under severe cold climate.

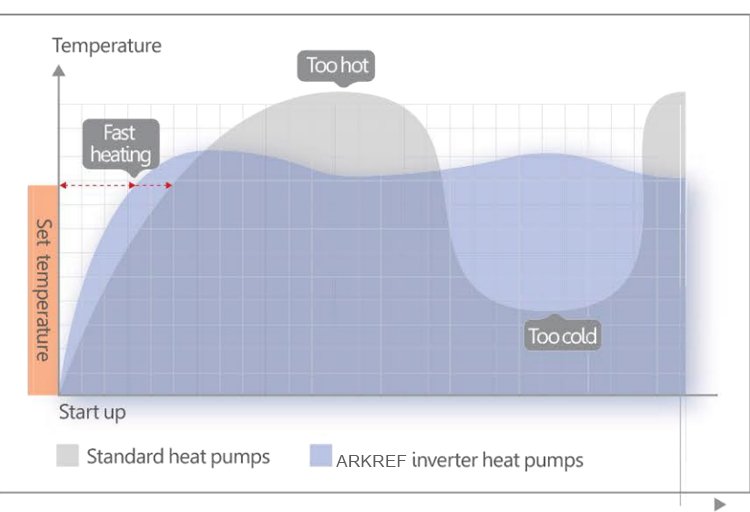

Speed Up Heating And Cooling Time

When there is a large difference between the actual temperature and the programmed temperature, the unit can run at a higher frequency to make fast heating or cooling to increase or decrease the temperature rapidly.

No Frosting At The Bottom

With the use of the special liquid distribution technology, in heating mode, the temperature of the refrigerant in the air exchanger's bottom copper tube will not decrease in order to ensure no frosting on it and smooth drainage.

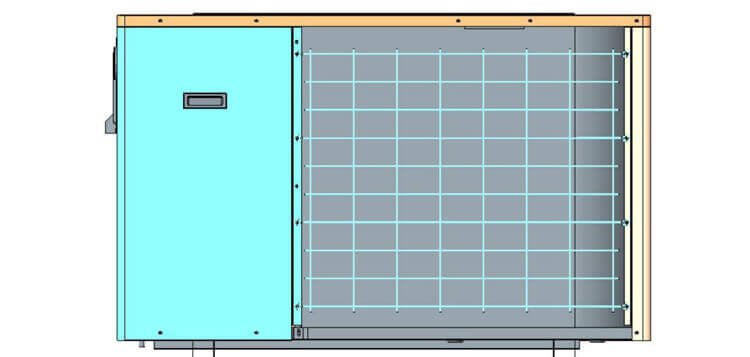

Compact Design

Product design is compact. Effectively reduce the loss of machine life due to pipeline vibration and reduce machine operating noise.

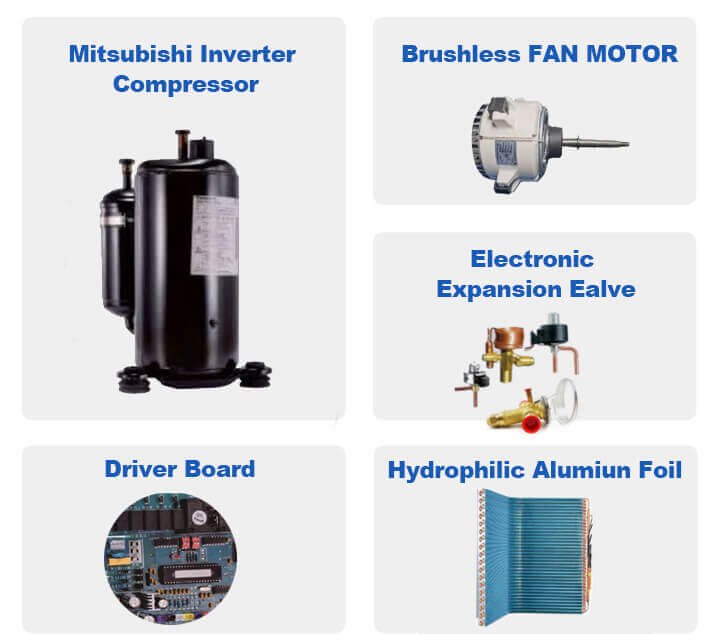

Core Components
