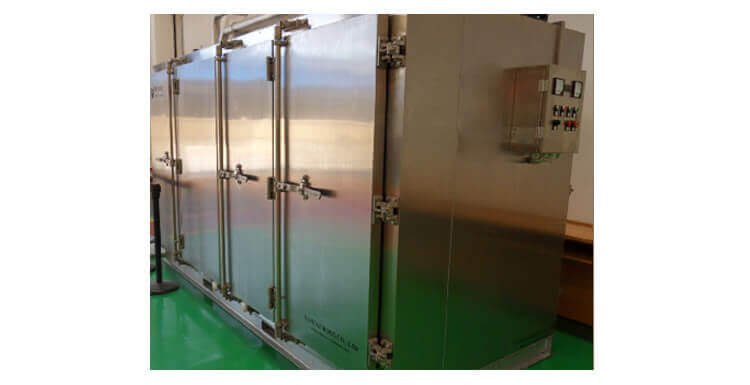

Plater Freezer
The freezing mode of contact freezers is quick contact freezing.
●High heat transfer efficiency, high freezing speed, short freezing time, high freezing quality, and low weight loss
●Low energy consumption because of no need for fans in the equipment
●Small equipment volume and small floor area
●Equipment delivery as a whole so as to save the customer's construction cost
Technical Parameter
| Model | Freezing capacity | Freezing time(min) | Installed power | Cooling capacity | Size(cm) | Transmission bandwidth |
| SZ-1F150 | 150 | 6~60 adjustable | 13.95kw | 34 | 96*25*25 | 1.219m |
| SZ-1F200 | 200 | 13.95kw | 41 | 126*25*25 | 1.219m | |
| SZ-1F250 | 250 | 19.5kw | 52 | 96*25*25 | 1.219m | |
| SZ-1F300 | 300 | 20.2kw | 64 | 146*25*25 | 1.219m | |
| SZ-1F500 | 500 | 24.2kw | 100 | 196*25*25 | 1.219m | |
| SZ-2F500 | 500 | 27kw | 100 | 126*39.8*26 | 2*1.219m | |
| SZ-2F1000 | 1000 | 40.4kw | 175 | 126*39.8*26 | 2*1.219m |
Customization Process
Need to provide the following information:
1.Types of frozen products
2.Quantity of quick-frozen products
3.Freezing time
4.The temperature of the food before quick freezing?
5.The core temperature of the goods after quick freezing?

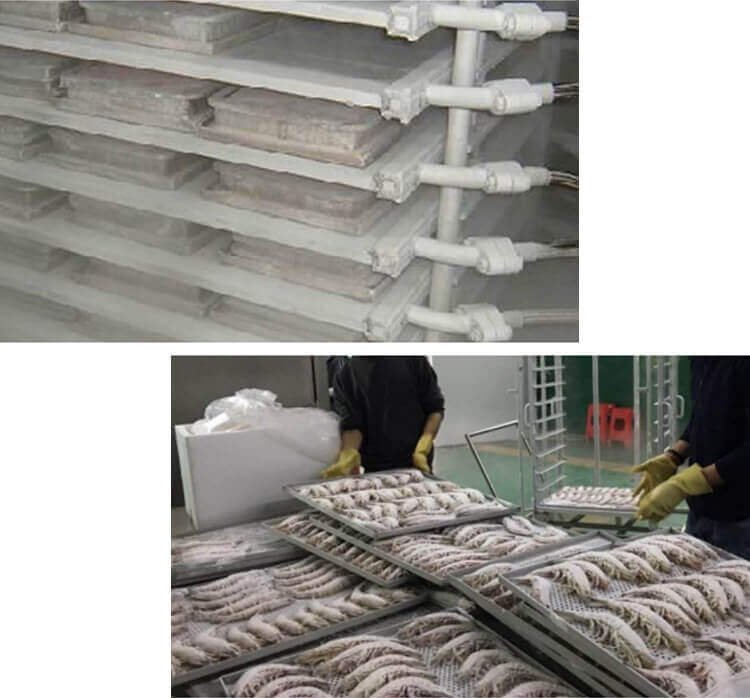

The freezing of the contact freezer is a contact quick freezing.It is mainly suitable for the freezing of all kinds of fish and shrimps.
Details

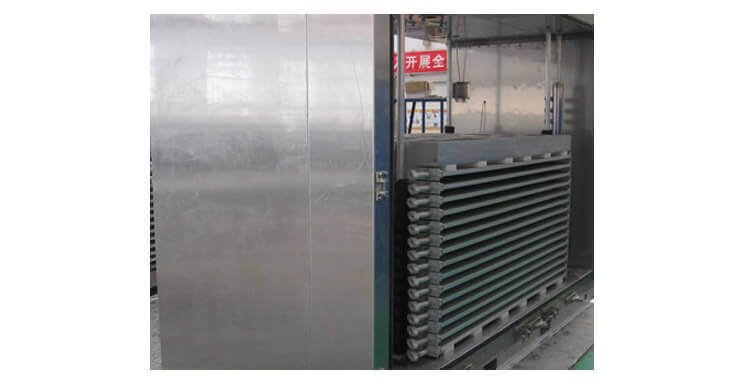

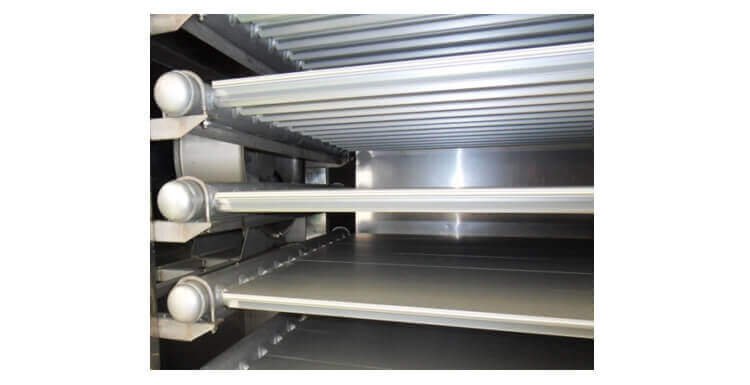

The freezing plate is a professionally esigned plate evaporator, ensuring uniform and smooth flowing of refrigerant, making the surface temperature of the plate uniform and consistent and realizing high heat transfer efficiency.
2.Good insulation performance
The warehouse board uses double-sided stainless steel structure, which has good heat preservation and energy saving.

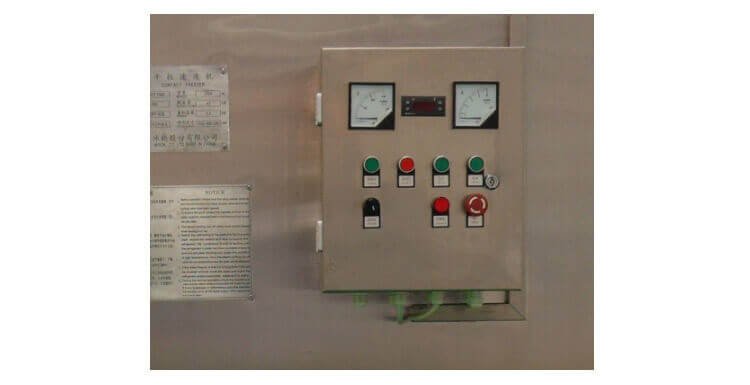

3.The control components are manufactured by well-known manufacturers such as chneider and Siemens.The operation of the control system is reasonable, simple and reliable.The control cabinet is designed with stainless steel moisture-proof structure.
4.Small equipment volume and small floor areaEquipment delivery as a whole so as to save the customer's construction cost
Successful Cases
