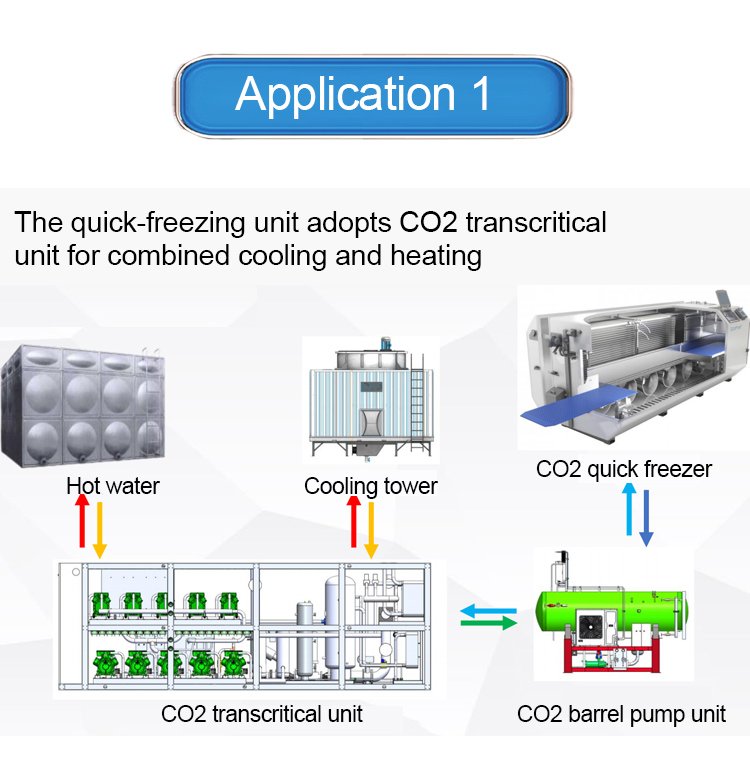

|Quick freezing of vegetables and fruits + condensation waste heat recovery
|Evaporation temperature -40°C; cooling capacity 300kW; heat recovery water inlet temperature 40°C; outlet water temperature above 60°C; hot water for milk and cheese processing.
|Customer-owned flow-type plate quick-freezing machine, quick-freezing capacity 1800kg/h, CO2 barrel pump liquid supply.
|The customer has installed an open cooling tower
|There are 6 main compressors and 2 parallel compressors, with ejectors, electric three-way valves and three-stage heat recovery,with a cooling capacity of 600kw.

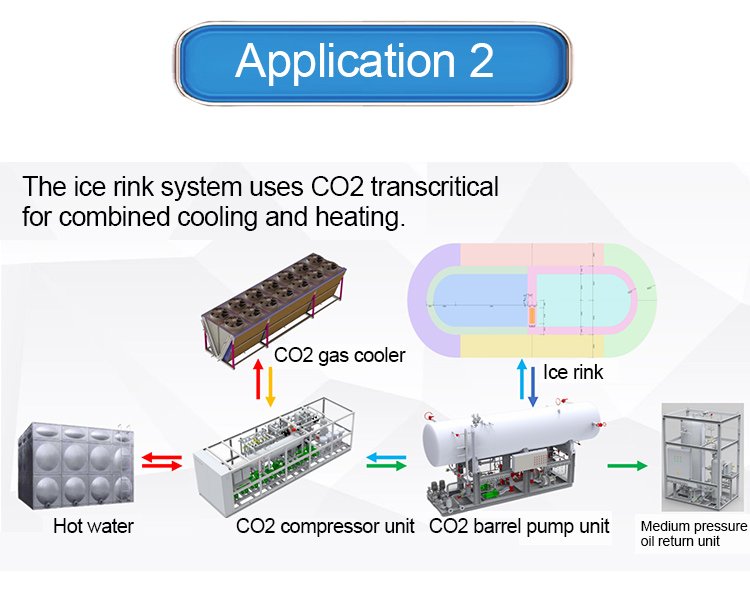

|Indoor ice making coil + barrel pump liquid supply
|Air-cooled air cooler + adiabatic humidification spray wet curtain; three-stage heat recovery;

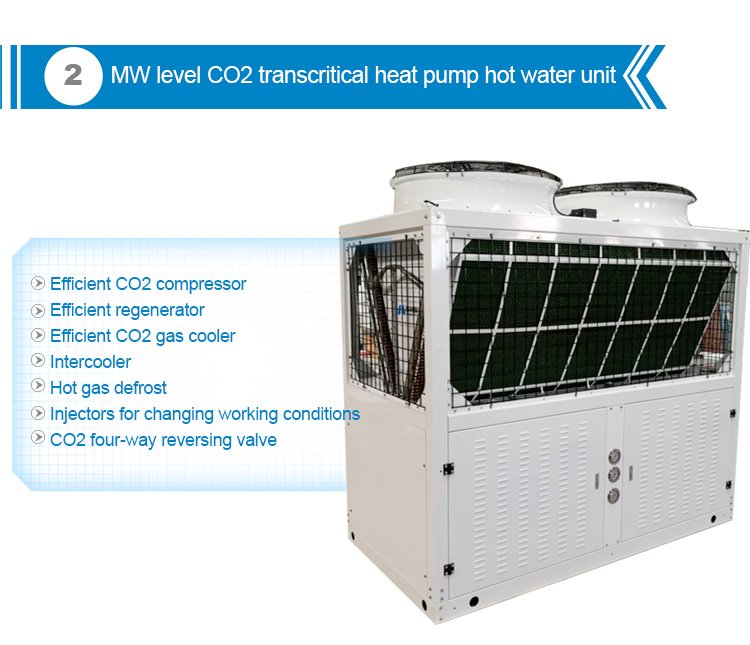

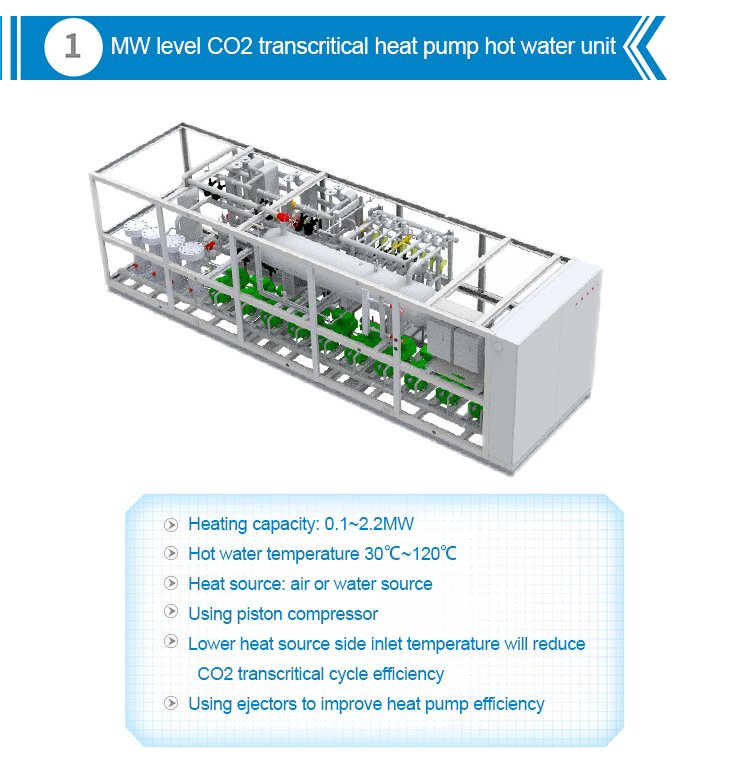

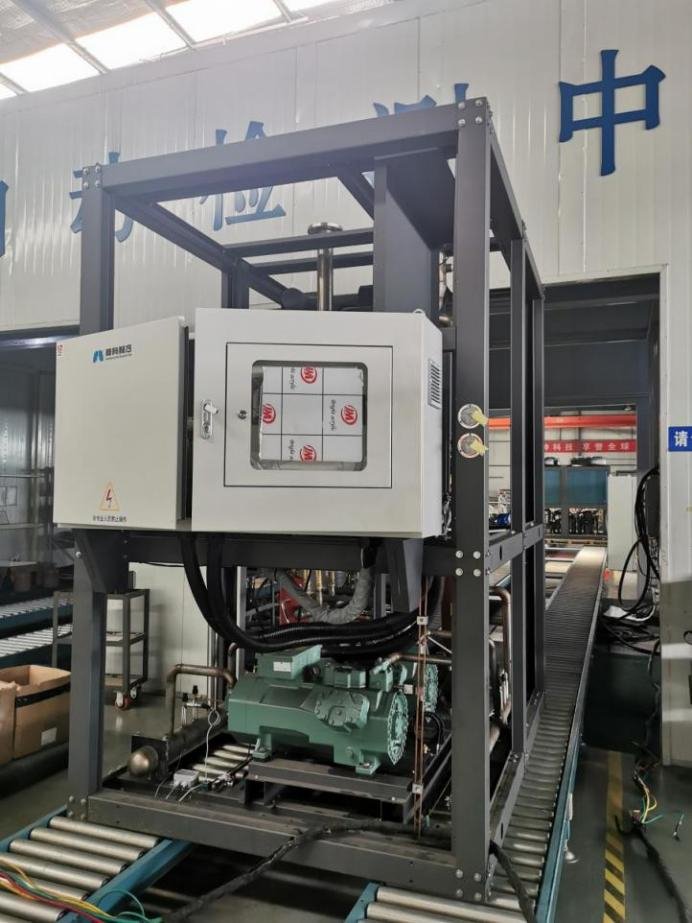

CO2 heat pump

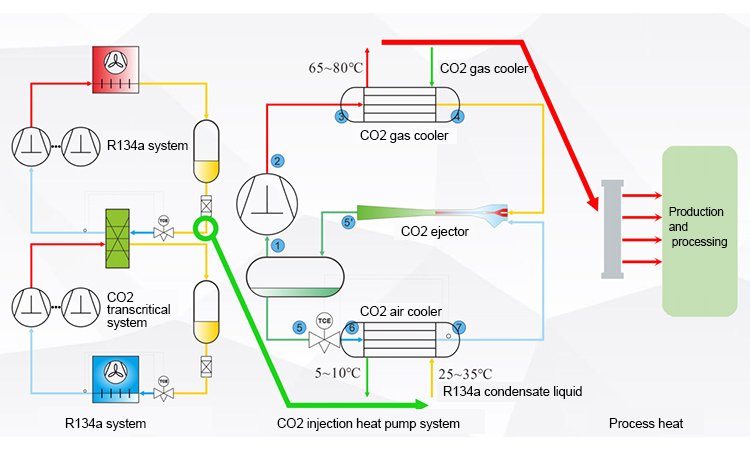

The refrigeration system adopts R134a/CO2 cascade system, and the recovery of condensation waste heat adopts CO2 transcritical heat pump. The heat source side is the liquid after R134a condensation, which provides subcooling and improves the efficiency of the refrigeration system. The CO2 heat pump raises the 5°C cold water to 75℃ at one time.
Refrigeration system subcooling plate heat exchanger, subcooling heat recovery
Multi-flow plate heat exchanger, one-time high-temperature hot water
