Logistic Cold Room
Project introduction: This project is a logistics cold storage project. It includes four low-temperature cold storage, three vegetable storage, one pre-cooling storage, and hallway air conditioners. The units use SCBH130YA, SPBH240, SPBSL375. Among them, the low-temperature cold room adopts aluminum exhaust pipes and a direct expansion liquid supply, and the rest of the system adopts a ceiling-type air cooler and direct expansion liquid supply.

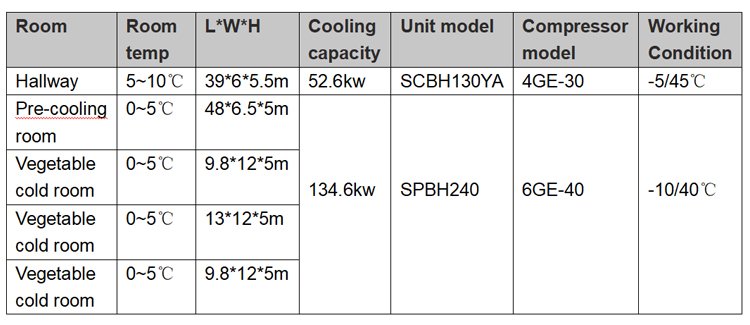

Selection of medium temp refrigeration unit
Room | Room temp | L*W*H | Cooling capacity | Unit model | Compressor model | Working Condition |
Hallway | 39*6*5.5m | 52.6kw | SCBH130YA | 4GE-30 | -5/45℃ | |
Pre-cooling room | 48*6.5*5m | 134.6kw | SPBH240 | 6GE-40 | -10/40℃ | |
Vegetable cold room | 0~5℃ | 9.8*12*5m | ||||
Vegetable cold room | 0~5℃ | 13*12*5m | ||||
Vegetable cold room | 0~5℃ | 9.8*12*5m |
Selection of low temp refrigeration unit
Room | Room temp | L*W*H | Cooling capacity | Unit model | Compressor model | Working Condition |
163.2 | SPBSL375 | HSN7471-75 | -42/35℃ | |||
-35℃ | 19.5*18*5.5m | |||||
-35℃ | ||||||
Room4 | -35℃ | 32*18*5.5m |
