Restaurant Cold Room
Small cold storage, suitable for small restaurants or supermarkets. The unit adopts the VFD condensing unit S3 independently produced by Arkref. The unit has its own frequency conversion, which can realize automatic frequency conversion of 30~80hz, which is more energy-saving.
Project Information
Room | Cold room temp | Refrigerant | Electrical system | Incoming tem | Shipping temp | Daily incoming quantity | Cooling time |
Low temp cold room | -18~-20℃ | R404 | 3*220V*60hz | -10℃ | -18℃ | 150kg | 24H |
Cold storage size | Square | Volume | Unit model | Working condition | Unit cooling capacity | Compressor model | Air cooler |
2.34*2.34*1.95m | 5m² | 11m³ | VFD condensing unit S3 | -30/45℃ | 1.08kw | HIGHLY DTH254 | SEL0200E |

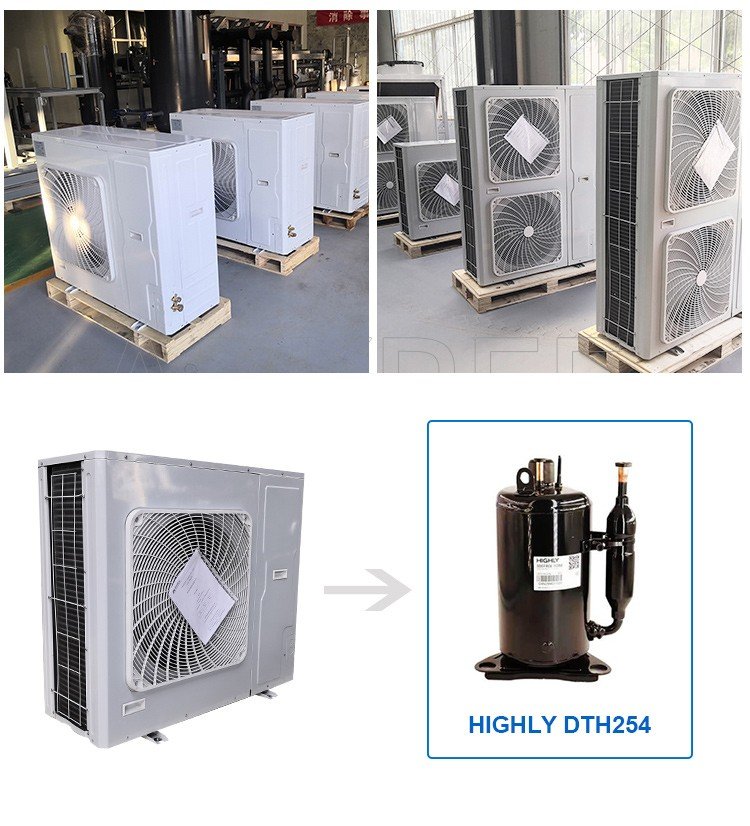

VFD Condensing Unit S3
| Model | S3 | S6 |
| Refrigerant | R404A/R407F/R448A/R449A/R452A/R455A(Do not mix) | |
| Power supply | 220V 50hz/60hz | |
| Suction tube | 16mm | |
| Exhaust pipe | 10mm | |
| Liquid Reservoir | SCYQ-5V | SCYQ-7V |
| Filter drier | DCL 163 | |
| Sight glass | SGN 10S | |
| L*W*H | 1100*410*940mm | 1100*410*1470mm |
| Evaporation temperature range | -40℃~10℃ | |

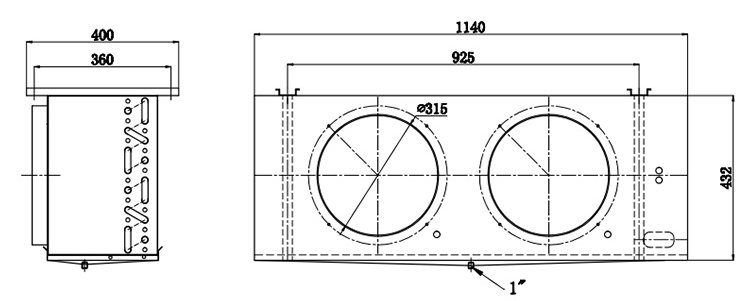

Air Cooler
Technical requirements:
1.Fin space 9.0mm
2.The fins are neatly arranged, and the tube is tight without looseness.
3.Equipped with 2-φ300 outer rotor motor.
4.Airtight pressure 2.5MPa, no leakage in water for 5 minutes
5.Air return pipe φ16, liquid inlet pipe φ6
6.Electric heating tube single power 0.8KW, 3 pieces.
7.Motor voltage 240v 60Hz.

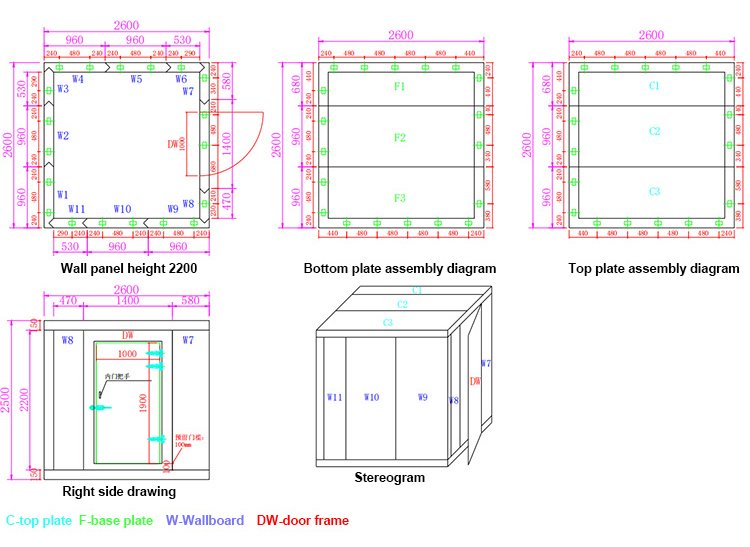

Cold Room Door And Panel
Wall panel:
150mm thick, 0.5mm double-sided color steel;
Bulk weight: 40kg/m³;fire rating: B2
Floor panel:
150mm thick,single-sided color steel, single-sided 3mm embossed aluminum plate;
Bulk weight: 40kg/m³;Fire rating B2
Cold room door:
1000*1900*150mm thick, double-sided 0.5mm color steel, with anti-freezing electric heating, with air curtain machine
