Spiral Freezer
●The spiral freezer is an efficient freezing device that freezes a large number of products in a small floor space. The freezing amount can reach 500kg/h-3000kg/h.
●Spiral quick-freezing machine is widely used in bread fermentation, cooling application fields, and frozen foods such as seafood, noodles, meat products, poultry products and dairy products, ice cream, and other foods.
Technical Parameter
Freezing capacity | Freezing time | Installed power | Cooling capacity | Enclosure size(cm) | Dimensions (cm) | |
| SZ-1SF200 | 200kg | 10-100 adjustable | 11.05kw | 64kw | 44*28*24 | 49*28*24 |
| SZ-1SF300 | 300kg | 11.05kw | 96kw | 44*28*24 | 49*28*24 | |
| SZ-1SF400 | 400kg | 12.5kw | 128kw | 55*28*28 | 60*28*26 | |
| SZ-1SF500 | 500kg | 12.5kw | 160kw | 55*28*28 | 60*28*28 | |
| SZ-2SF600 | 600kg | 21.9kw | 192kw | 85*36*29 | 110*36*29 | |
| SZ-2SF800 | 800kg | 21.9kw | 216kw | 85*36*30 | 110*36*30 | |
| SZ-2SF1000 | 1000kg | 27.9kw | 240kw | 136*55*30 | 162*55*30 | |
| SZ-2SF1500 | 1500kg | 27.9kw | 324kw | 148*55*38 | 173*55*38 |
Customization Process
Need to provide the following information
1.Types of frozen products
2.Quantity of quick-frozen products
3.Freezing time
4.The temperature of the food before quick freezing?
5.The core temperature of the goods after quick freezing?
The continuous quick-freezing mode of spiral freezer is suitable for large-volume processing and production in factory assembly lines. It has strong quick-freezing capacity, simple operation and high degree of automation.
Details

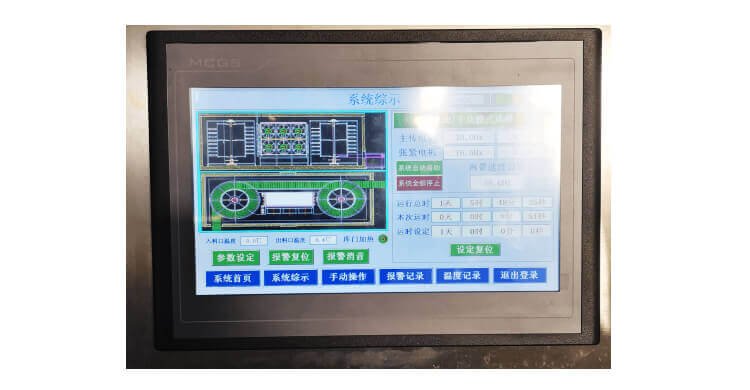

1.control system
Man-machine interface, touch screen operation
2.304 stainless steel
Food grade 304 stainless steel, sturdy and durable, no rust

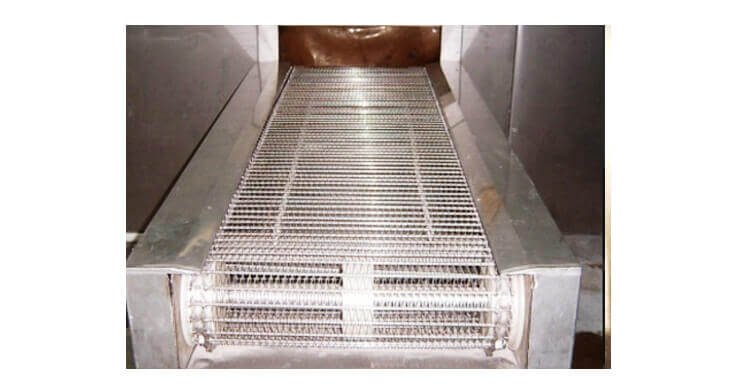

3.Mesh belts
The surface of mesh belts is flat and attractive, and mesh belts run stably and reliably;flanges are set up on the chain pieces on the two sides of mesh belts to prevent materials from slipping down.

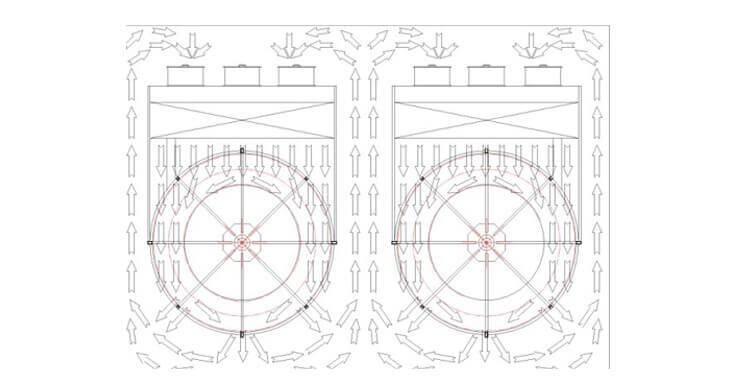

4.Perfect wind field design
Symmetrical layout of the wind field, reasonable and smooth air duct. The air volume, air pressure, freezing speed and uniformity with scientific proportioning, low dry consumption. The low-speed return air passage reduces the frosting speed of the evaporator.

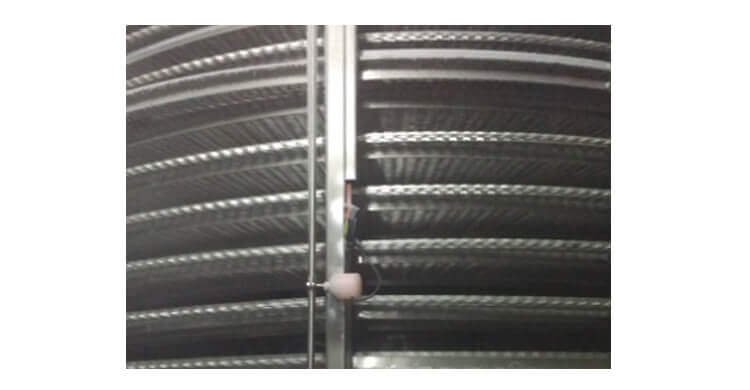

5. Stable and reliable transmission system
Imported well-known brand reducer

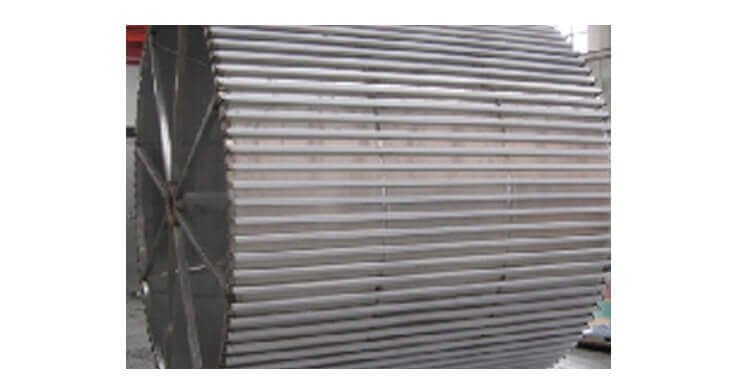

High-precision rotating cage+ultra-high molecular polyethylene wear-resistant strip Universal spherical roller bearings

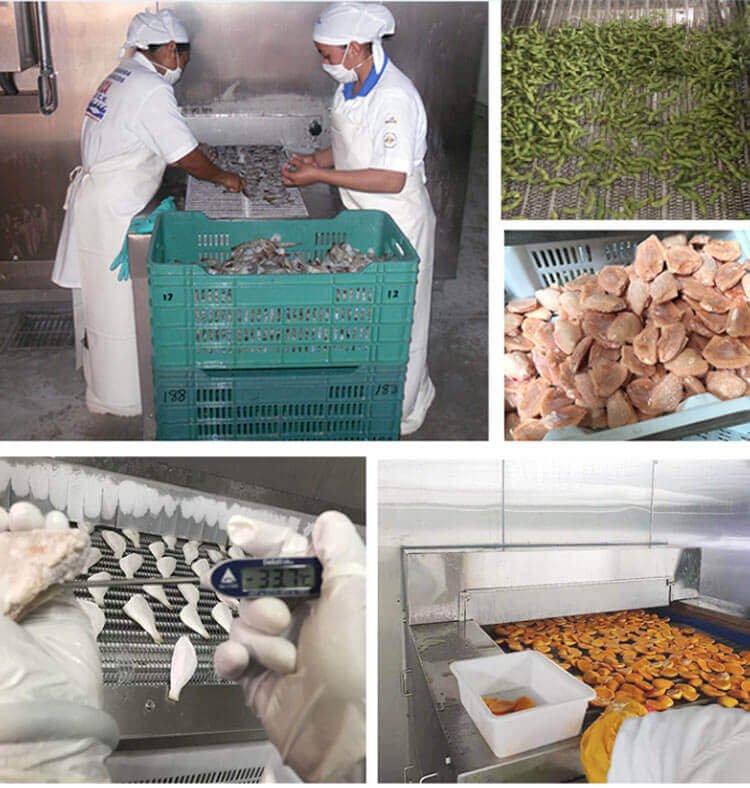

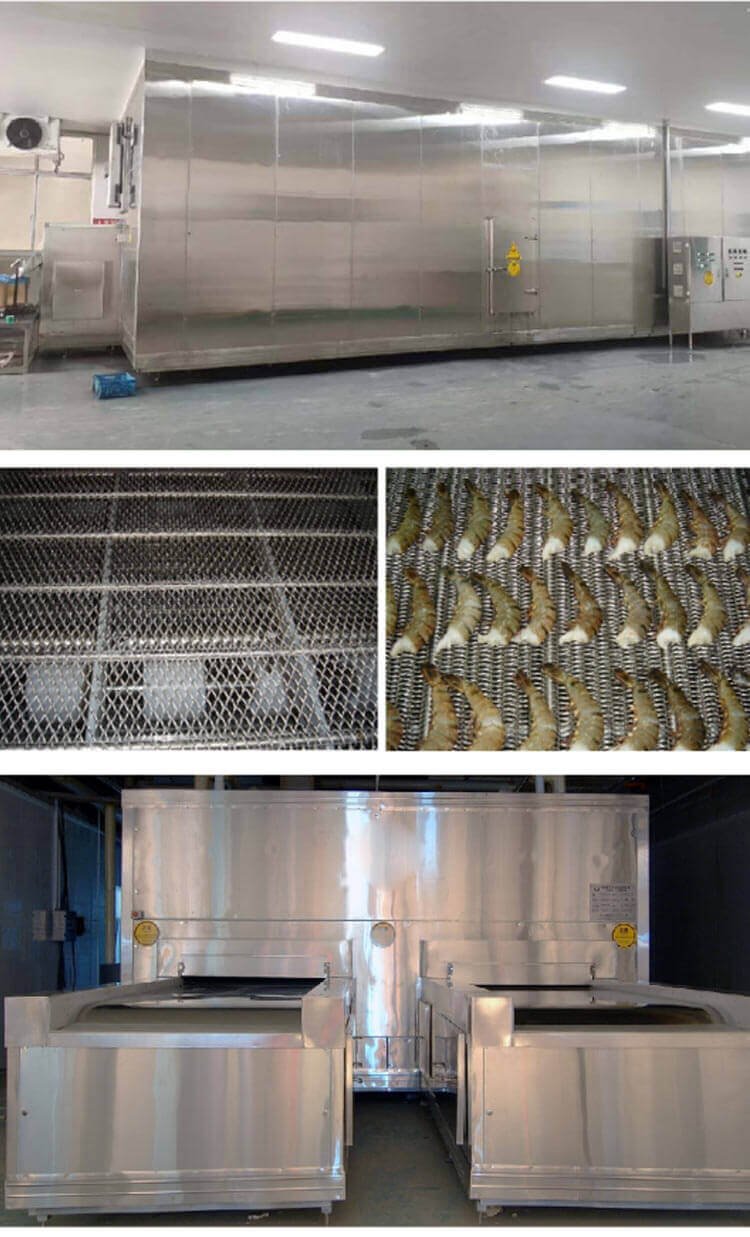

Successful Cases
